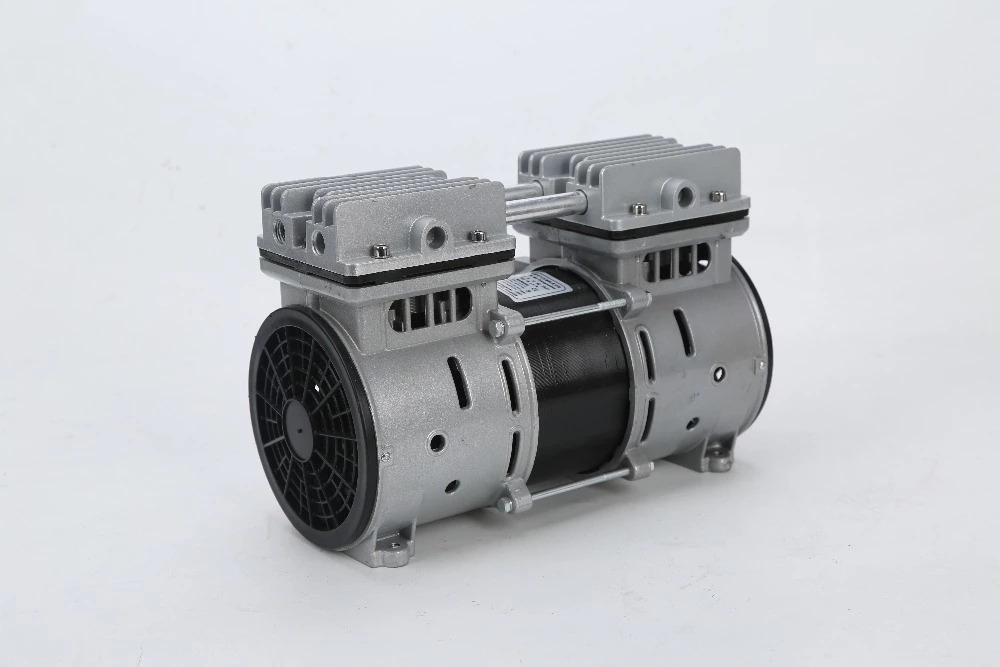

Oil free air compressor for medical ventilator
Specifications: BST400-7AF/BS
Type: Swing piston type
Characteristic service: Support --OEM / ODM
Voltage range: AC or DC
- Specifications
- Detail
- Characteristic
|
Details of the date
|
|||
|
Model
|
BST400-7AF/BS
|
||
|
Voltage/frequency V/Hz
|
220-240V/50Hz ; 110-115V/60Hz
|
||
|
Input power /W
|
≤480
|
||
|
Speed r/min
|
≥1350 ; 1650
|
||
|
Rated working pressure /KPa
|
700
|
||
|
Maximum pressure /KPa
|
800KPa
|
||
|
Rstartup pressure /KPa
|
0KPa
|
||
|
Rated volume flow / m3/h
|
1.8m3/h @700KPa
|
||
|
Level of vacuum mmHG ; (KPa)
|
707 mmHG ; (93KPa)
|
||
|
The secondary vacuum mmHG ; (KPa)
|
745 mmHG ; (98KPa)
|
||
|
Noise dB(A)
|
≤64dB(A)
|
||
|
Ambient temperature /℃
|
-5～40 ℃
|
||
|
Insulation Class
|
B
|
||
|
Cold insulation resistance /MΩ
|
≥100MΩ
|
||
|
Withstand voltage strength
|
1500V/50Hz 1min No breakdown
|
||
|
Thermal protector
|
Auto-reset 135±5℃
|
||
|
Capacitor /μF
|
15μF±5% ; 45μF
|
||
|
Net weight /Kg
|
9.5Kg
|
||
|
Installation dimension /mm
|
223.2×88.9 mm(4XM6)
|
||
|
External dimensions /mm
|
268.8×128×212.7 mm
|
||
|
intake / exhaust dimensions
|
G1/4 Of Accept customization
|
||
Bst400 / 7af / BS is a high-quality medical ventilator designated oil-free air compressor, please identify besten brand
Low noise, large exhaust volume, small heat generation of motor, support S1 continuous trouble free operation, clean air, oil-free, small vibration.
